Rotary Cutter
Mini Cloth Cutter Clean, Qualified, Durable, Avoid-rust transaction. As if a jumped jarguar. The very mini electric cloth cutter !
Ideal for Tailoring, Drapery Stores, Carpet Makers and Leather Materials, and etc...
• Geniusly Design to fit exterior Dynamic And Save Enormous Labor Work.
• Light in weight, when operating produces less noise than ordinary cutter.
• Adjusting switch for easy cutting.
• High Torque Motor; Longer lasting life.
 |

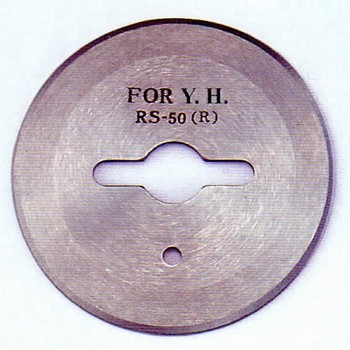

D-0 / Round Blade 2" Suitable for thin material. |
 |
D-531 / Seven Blade 2" Suitable for thick material (with Scissor Action Strokes). *with "Push Button" sharpener. |

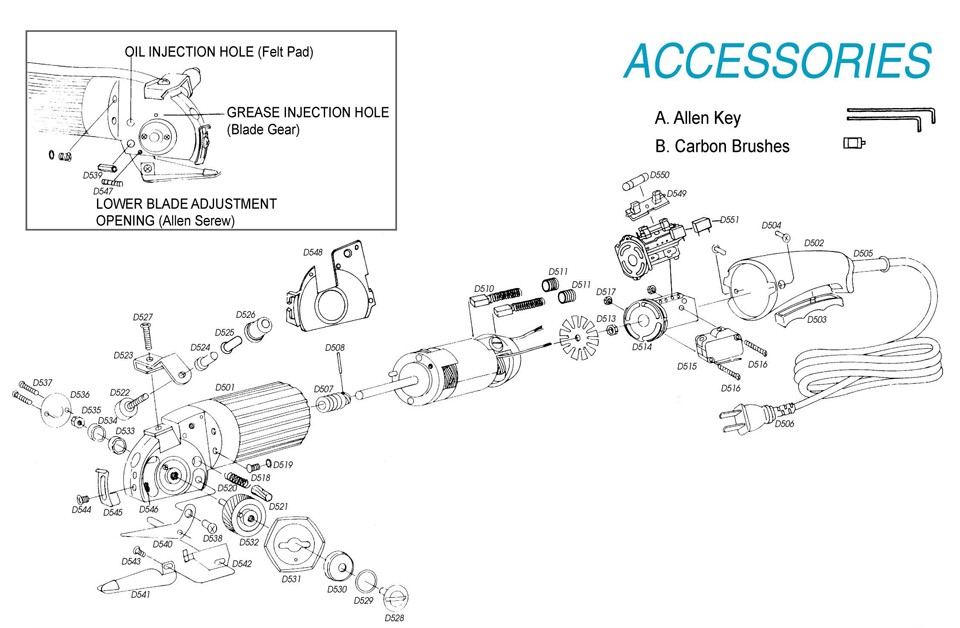

Part-List D-0 Round Knife 2” D527 Set screw for grinder bracket 4x10 D501 Main housing D528 Blade lock screw with tension D502 Rear housing D529 Blade lock screw with tension D503 Switch bar D530 Blade lock screw with tension D504 Set screw for rear housing D531 Hexagonal blade (standard) D505 Cord sleeve D532 Worm gear-plastic D506 Cord complete with plug D533 Ball bearing D507 Worm gear (motor side)--steel D534 Trust collar D508 Roll pin for worm gear D535 Hexagonal nut D509 Motor assembly (100V/220V) D536 Cover plate D510 Carbon brush with spring D537 Set screw 3x10 D511. Screw cap for carbon brush D538 Set screw for counter blade 4x10 D512 Ventilator for motor D539 Set screw nut for counter bladet D513 4mm screw nut for motor ventilator D540 Counter blade D514 Switch D541 Sliding base plate D515 Micro-adjust switch D542 Dust proof metal shim D516 Set screw for micro switch 3x15 D543 Set screw for sliding base plate 3x5 D517 Set screw nut for micro switch 3x5 D544 Set screw for finger guard 4x6 D518 Set screw for main housing D545 Finger guard
